Description
The Yato Digital Multimeter digital meter is particularly useful for the diagnosis and detection of defective components in electrical installations.

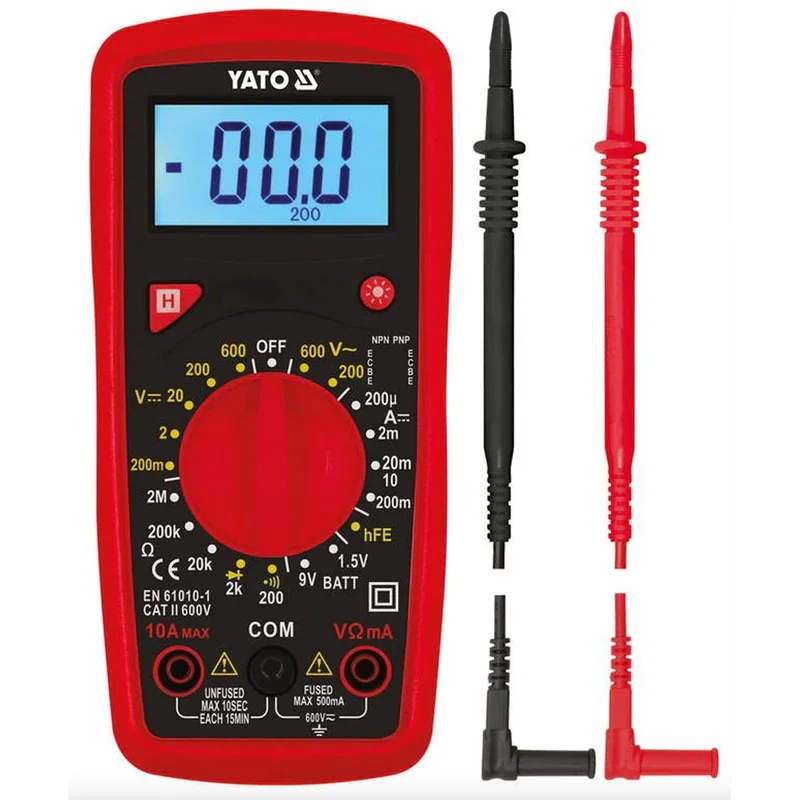

The Yato YT-73081 multimeter, has an LCD display, with blue backlighting, which greatly facilitates the reading of measurements in the dark.
The Data Hold feature allows you to save the current measured value on the screen.
The Yato multimeter is powered by two 1.5V batteries. Thanks to the Auto-Power Off function, the device will be automatically turned off after 15 minutes of inactivity, which allows you to save battery and extend its lifespan.
The device has overload protection and a low battery indicator.
It comes in rubber housing that protects it from mechanical damage and at the same time increases the comfort of use. In addition, on the back there is a foldable support that allows you to set it to a location that makes it easier to read data on the screen.
Technical Characteristics
Product Code: YT-73081
Battery Test: 1.5V, 9V
DC: I DC 200 A, 2 mA, 20 mA, 200 mA, 10 A
Diode Test: IF 1 mA, UR 1,5 V
Transistor Test: hFE PNP, NPN
An audible signal allows you to easily verify the continuity of the circuit
Measuring hFe Transistors: PNP, NPN
AC Voltage Measurement: 0-600V
DC Voltage Measurement: 0-600V
Resistance Measurement: 0-2M OHM
Constant Current: 0-10A
Follow-up Test: Yes
Diode Test: Yes
3½ Digits LCD Screen
Low Battery Indication
Overload Protection
Dimensions: 180 x 90 x 40 mm
Weight: 360 gr
