Description

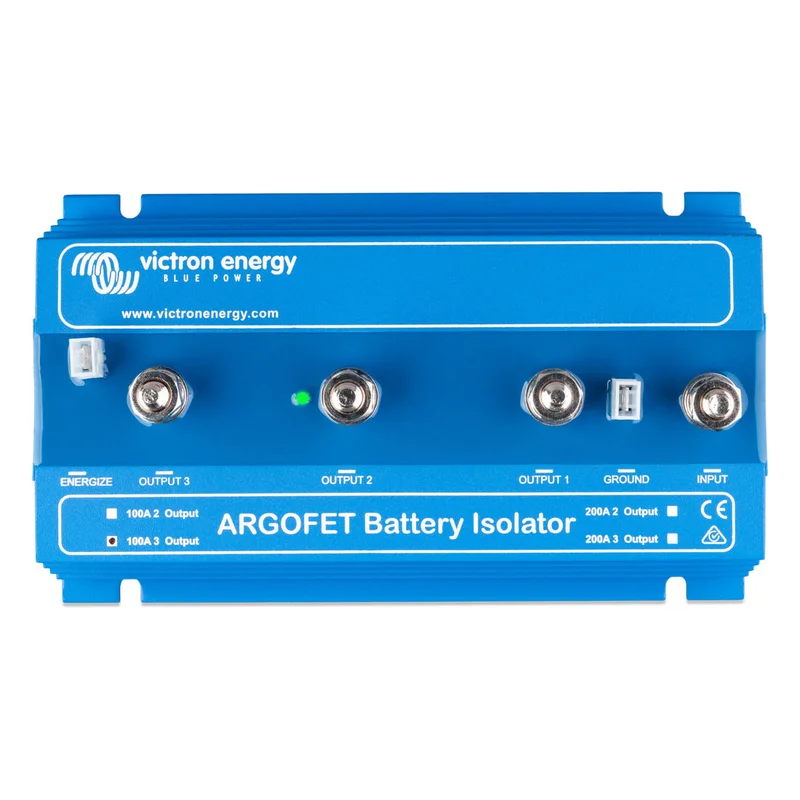

Similarly to Argodiode battery isolators, Argofet isolators allow simultaneous charging of two or more batteries, from one alternator , without connecting the batteries together.
In contrast with Argodiode battery isolators, Argofet isolators have virtually no voltage loss.
Voltage drop is less than 0,02 Volt at low current and averages 0,1 Volt at higher currents.
When using Argofet Battery Isolators, there is no need to also increase the output voltage of the alternator. However, care should be taken to keep cable lengths short and of sufficient cross section.
The Argofet Isolators have a special current limited energize input that will power the B+ when the engine run/stop switch is closed.
Download here the products Manual.
Download here the products Mechanical Drawing.
Download here the products Data Sheet.
Technical Characteristics
Product Code: 9041-911003-
Power: 100
Input: 1
Output: 3
Weight: 1.25 kg
Dimensions: 60 x 120 x 200 mm
