Description
A rivet is a type of mechanical fastener, used to connect, or assembly metallic parts permanently.
rivet consists of a smooth cylindrical shaft, with a head on one end. The opposite of the head is called the tail.

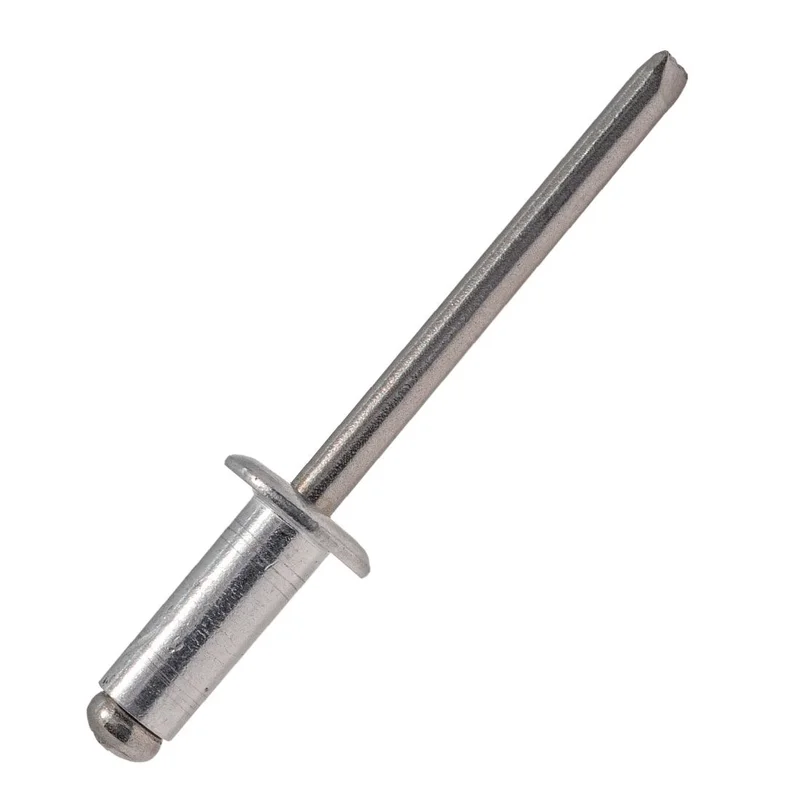

These stainless steel pan head blind rivets are A2 quality made of 304 steel.
Sold per piece.
| d | d1 | b | e | I | S |
| 3 mm | 3.1 mm | 6.5 mm | 0.8 mm | 8 mm | 3.0 mm – 5.0 mm |
| 12 mm | 7.0 mm – 9.0 mm | ||||
| 4 mm | 4.1 mm | 8 mm | 1 mm | 8 mm | 2.5 mm – 4.5 mm |
| 12 mm | 6.5 mm – 8.8 mm | ||||
| 16 mm | 8.5 mm – 12.0 mm | ||||
| 5 mm | 5.1 mm | 9.5 mm | 1.1 mm | 12 mm | 6.0 mm – 8.0 mm |
| 16 mm | 8.0 mm – 11.0 mm | ||||
| 6 mm | 6.1 mm | 3.6 mm | 1.5 mm | 12 mm | 4.0 mm – 6.0 mm |
| 16 mm | 6.0 mm – 9.0 mm | ||||
| 6.4 mm | 6.5 mm | 3.85 mm | 2.1 mm | 16 mm | 6.5 mm – 9.5 mm |
