Description

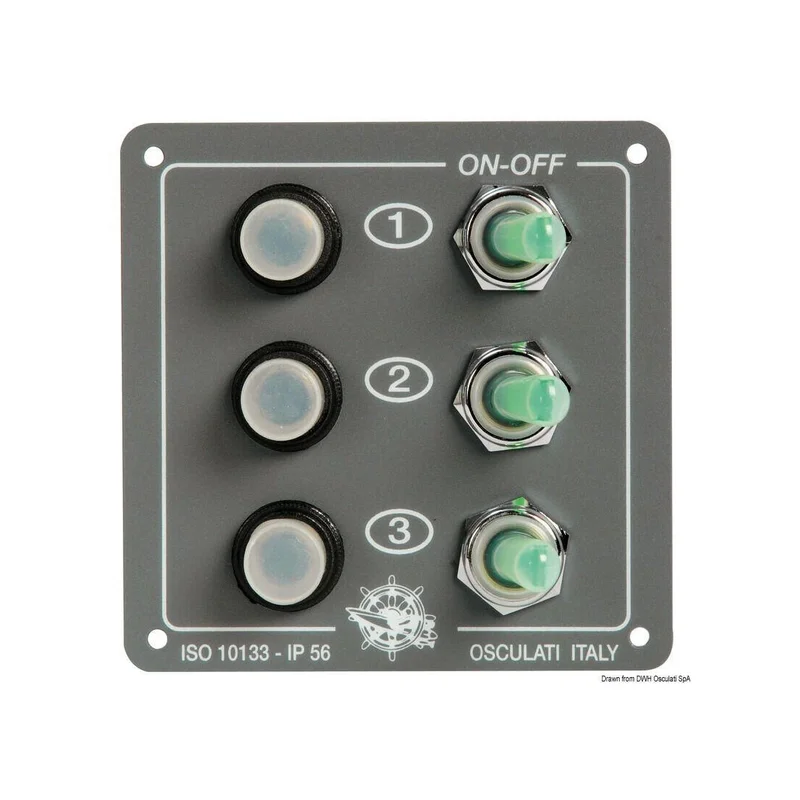

Multi-function Osculati electric board for marine use with protection level IP56, made of grey anodized alloy.
The Osculati switch panel is available with resettable automatic fuses.
In each switch panel:
The first switch has three positions On-Off-On
The last switch has two positions -Off. This is a Relay or Reset switch. Reset switches are often used for winch controls, horns, engine starters and other applications when you dont want the switch to be unintentionally left on.
The in-between switches are On-Off
The 5 switches panel includes a 12V socket
Technical Characteristics
| Product Code | Switches | Number of Fuses / Amps | Dimensions |
| 14.800.00 | 3 | 2 – 10 & 1 – 15 | 9 x 9 cm |
| 14.705.00 | 5 | 1 – 5 & 3 – 10 & 2 – 15 | 9 x 17 cm |
| 14.700.00 | 6 | 3 – 10 & 2 – 15 | 9 x 17 cm |
