Description

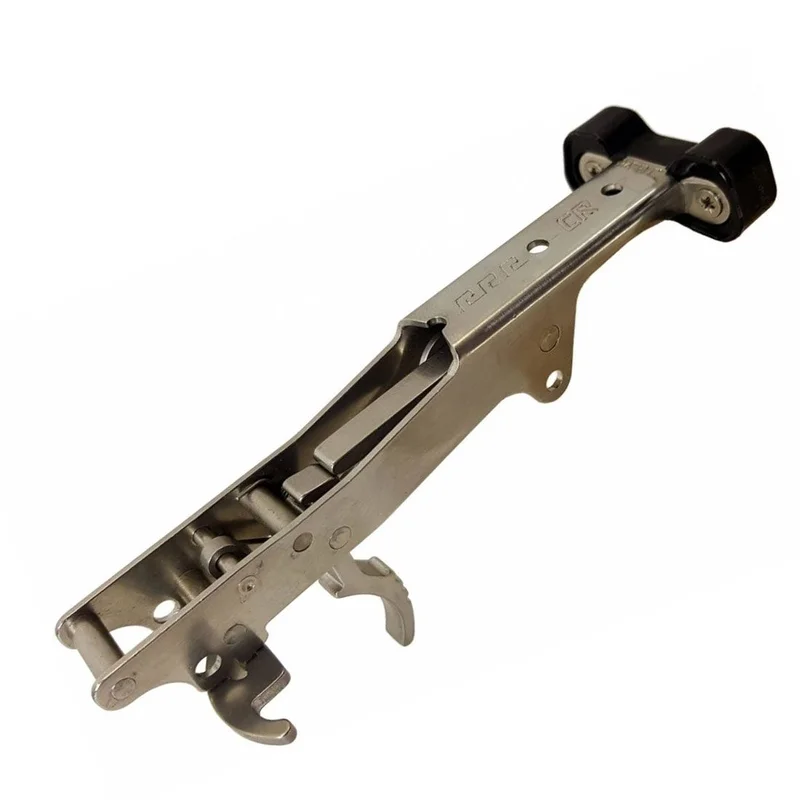

The Meandros Reverse Trigger Mechanism Nitro – CR is the ideal solution, for upgrading the Cressi Comanche and Apache, spearguns with thermoplastic handle.
The Meandros Reverse Trigger Mechanism is easily fitted by using an installation jig form, that uses the holding pins, as in the original handle, in the same points. It is easily fitted with the mounting form included. Minimum intervention is required at points on the loading extended butt and the line release slot , by using the original holding pins off the handle at the same points.
One point of innovation, offering accuracy, is that the line release no longer rotates around an axis, but rotates to a cartridge outlet point. This fact frees us from complicated procedures for supporting the line release. Also, the trouble-free movement of the line release, incorporates a superior operating and manufacturing reversing trigger mechanism, that operates with push-rod propellants, independent of the trigger and spear rod, preventing the effect of hard trigger and deflection.
The mechanism, due to its unique design has unparalleled sensitivity, due the short route and ideal angle of rotation, thus the trigger resistance is unaffected under huge loads.
It self-centers and locks the shaft 6.5 cm farther than the classic front mechanism and can accept shafts with extra shark fin / notch, giving maximum loading length. It also features a discreet and durable loading butt, for comfortable, fast arming with excellent shooting image.
Technical Characteristics
Mechanism Type: Inverted, heavy duty, compatible with thermoplastic handles
Type of Line Release: Horizontal, Automatic
Holding Type: With 2 pins in pre-existing holes of the handle
Leverage: High, unaffected sensitivity to heavy loads
Shaft Compatibility: European & American type
Fitting Position: In pre-existing handle mechanism recess
Shaft Hook: A special type that self-centers the shaft at its entrance
Material: Inox 316 Marine Type
