Description

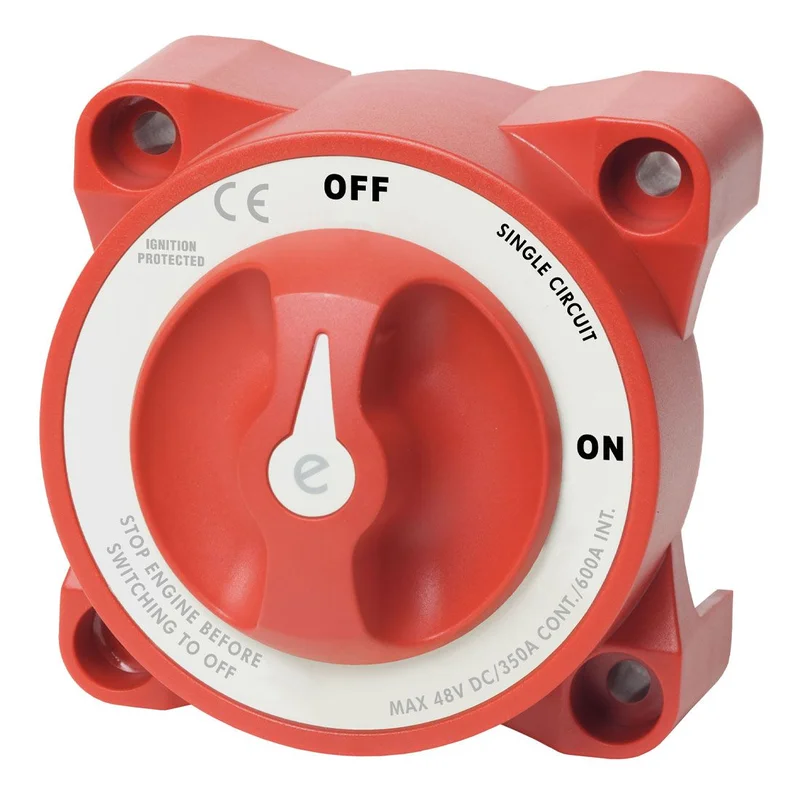

The Electron Single Circuit Battery Switch, isolates a single battery, to a single load group.
It is equipped with one-piece, Tin-plated copper studs, which never loosen over time and provide maximum conductivity and corrosion resistance. Studs accept 3/8″ ring terminals.
The Electron Battery Switch is intended to keep a load from discharging the battery system. The battery system is used for vital loads like engine starting.
Technical Characteristics
Ignition protected – safe for installation aboard gasoline powered boats
Compact design makes installation in tight places easy
Tin plated copper studs on the battery switch provide maximum conductivity and corrosion resistance
One Piece Copper studs are 7/8long and accept multiple cables
Switch Type: Single Circuit Plus
Switch Positions: 2
Battery Combine: No
Alternator Field Disconnect: No
Maximum Voltage: 48V
Continuous Rating: 350A
Cranking Rating: 500A
Intermittent Rating: 650A
Battery Inputs: 1
Cable Size to meet ratings: M10 / 4/0 AWG
Terminal Stud Size: 3/8″
Dimensions: 98 x 98 x 79 mm
